Designed for applications in all industrial sectors, research and development and laboratories for the connection of circuits for:
5 coupling sizes, 3 construction materials, 7 seal compounds, 3 shutoff systems, 7 safety connection keys and numerous threading types.
RBE quick couplings come in 5 different sizes in order to meet your different flow requirements:
Connection and disconnection are one-handed operations:
Single, double shutoff or unvalved. select the valving system required by your application.

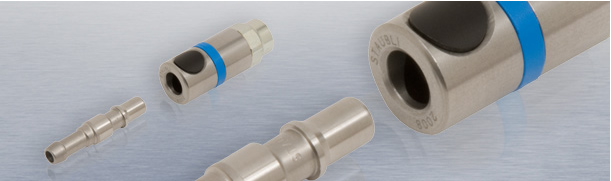

7 different mechanical keys:
|
|
yellow 180° |
|
blue 120° |
|
|
violet 165° |
|
brown 105° |
|
|
red 150° |
|
black 90° |
|
|
green 135° |
|
|
From the standard series to the full stainless steel model, combined with the maximum working pressure of your system and the external environment, RBE quick couplings offer a very large spectrum of combinations of construction materials according to your application.
Protection against dirt ingress, raised push button, safety button, fixing device for socket dust cap and more.
The particular technology of Stäubli’s range of couplings delivers long service life at a low operating cost.
Selecting the RCS range of quick release couplings will optimize the tightness of your circuits and reduce energy consumption. You spend less, and you contribute to sustainable development.
360° of freedom, performance and maneuverability.
Stäubli invents 3-in-1 active safety against the risk of violent hose ejection under pressure.
Quick couplings for all compressed air circuits:

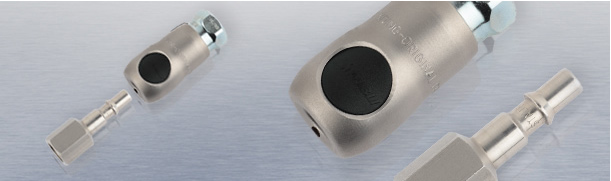

Simply pressing the button once starts a fully automatic disconnection process:
1. Closure of the upstream compressed air circuit
2. Decompression of the downstream circuit
3. Automatic disconnection of the plug as soon as the pressure is low enough.
RSI coupling bodies can be rotated to make the button as accessible as possible.
The perfect alliance of corrosion resistant material and safe operation.
Connections for compressed air and natural gas networks in corrosive environments:
The MPX prevents the introduction of air into the hydraulic circuits while assuring no pollution of the working area. Prior to connection, the flush faces may be easily wiped to prevent contamination of the circuits.
Automatic connection is achieved simply by pushing the plug into the socket.
A safety pin prevents accidental pulling back of the sleeve. To activate this safety feature a simple rotation of the sleeve after connection is required.
MPX couplings are equipped with fluorocarbon (FPM) seals as standard, providing:
Ensure safety and guarantee performance right down the line.
Thanks to the identification of sockets and plugs by coloured rings, circuit identification is quick and easy. The rings can also serve to number the circuits (on the socket side).
With a strengthened locking system, the security of the circuits is more reliable.
The locked position is instantly visible by the coloured ring on the socket.
The RPL range, with its clear bore, combines excellent flow with compact design. RPL connectors come in 3 sizes and cover all flow volumes required for mold temperature control.
Since the knurled locking ring makes it easier to grip the plug, connection and disconnection can be done with one hand, and in record time.
On both new and retrofit molds, it is possible to mount the RPL flush with the mold surface in order to prevent any damage during transport and storage.
